All-rotation casing excavator, ACM2000-eX, now on rental

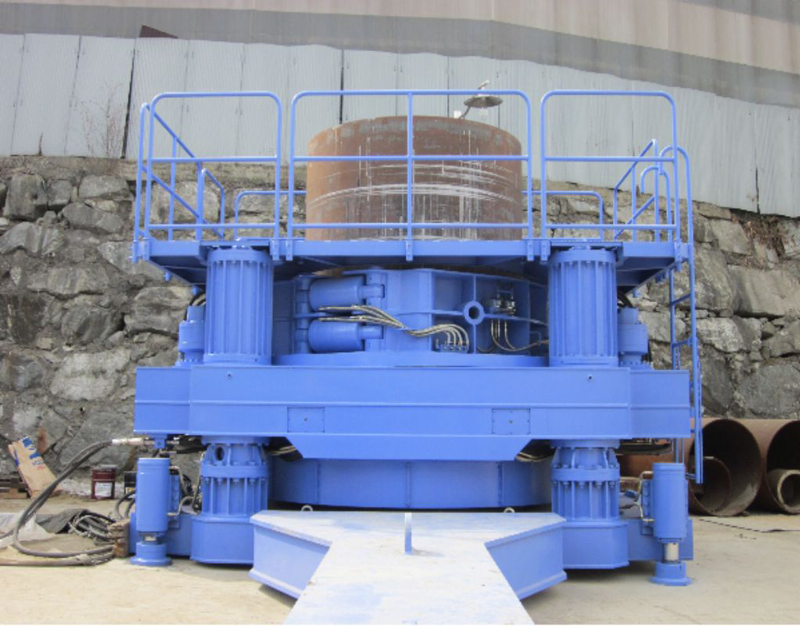

All-rotating casing excavator, ACM2000-eX, is introduced
Belt-type chuck system operated by hydraulic motor can eliminate troublesome joint connection. Max casing diameter is 2000mm (nominal).(actual 1980mm).
[Overview specifications]
- Model: AC2000-eX
- Max casing dia. D=2000mm
- Rotation torque: high 1159kN-m, low:2318kN-m
emergency:2626kN-m
- Extraction: 2353kN
- Stroke: 750mm
- Rotation (rpm): high 2.16-0.80min-1, low 1.08-0.4min-1
- Max pressure: normal 30.9MPa, emergency 24.5MPa
-Power unit model: ACP300PS
